Description

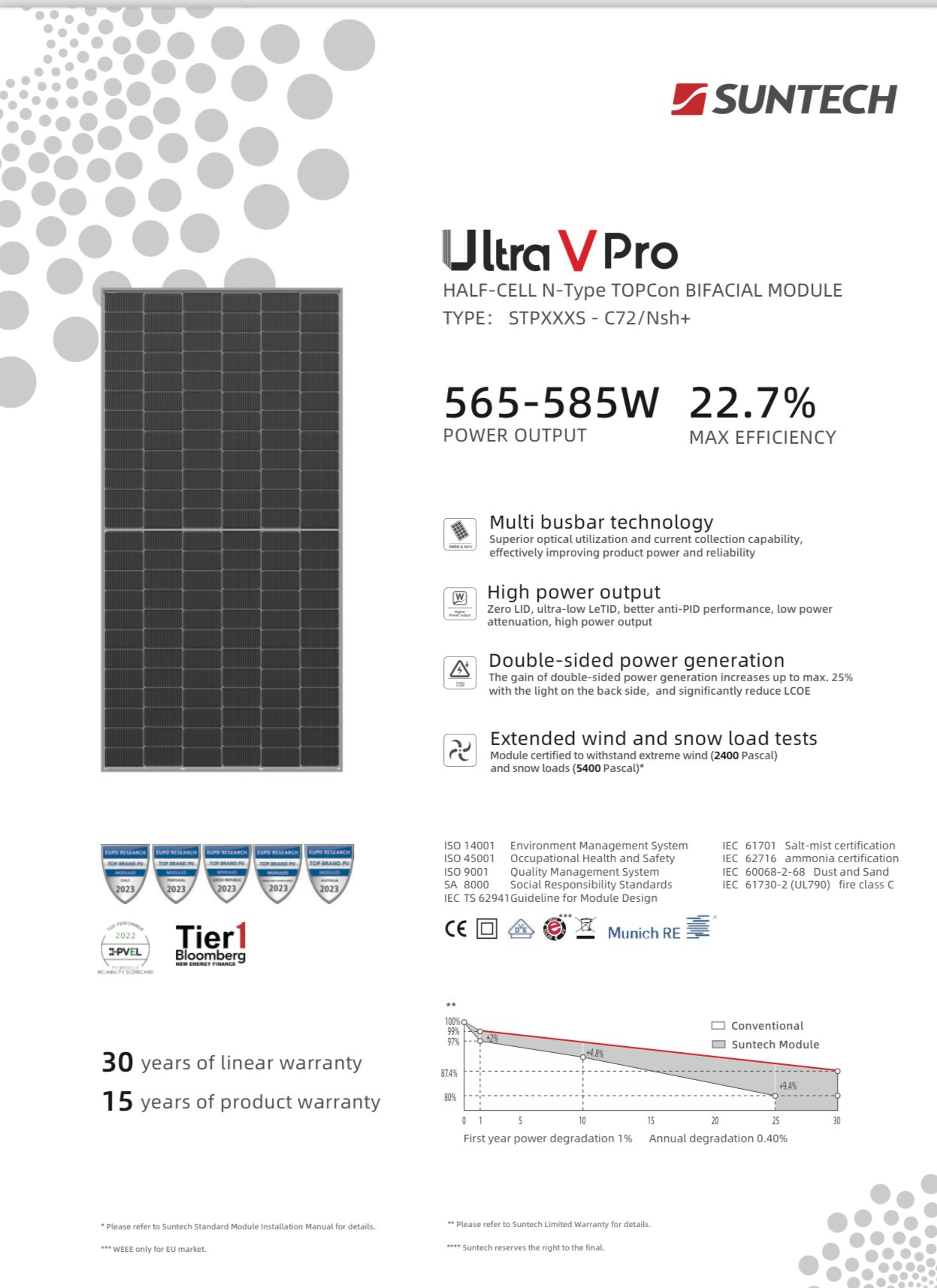

Ultra V Pro 580Watt
HALF-CELL N-Type TOPCon BIFACIAL MODULE
*Solar Cell N-type Monocrystalline silicon 182 mm
*No. of Cells 144 (6 × 24)

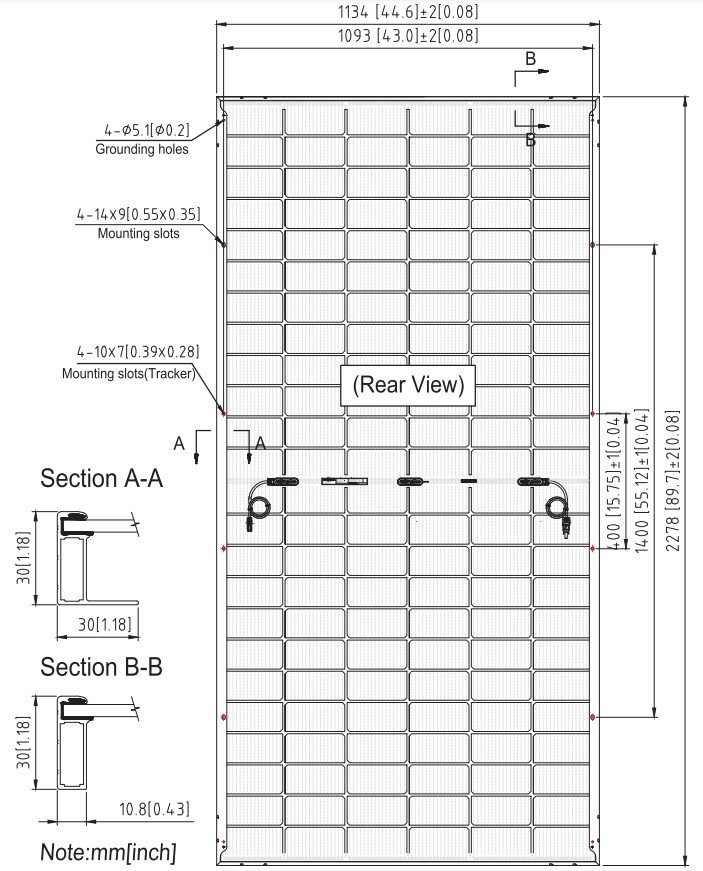

*Dimensions 2278 × 1134 × 30 mm (89.7 × 44.6 × 1.2 inches)
*Weight 32.0 kg (70.5 lbs.)
*Front Back Glass 2.0+2.0 mm (0.079+ 0.079inches) semi-tempered glass
*Output Cables
4.0 mm2, (-) 350 mm and (+) 160 mm in length
or customized length
*Junction Box IP68 rated (3 bypass diodes)
*Operating Module Temperature -40 °C to +85 °C
*Maximum System Voltage 1500 V DC (IEC)
*Power Tolerance 0/+5 W
*Frame Anodized aluminum alloy frame
*Packing Configuration
36 Pieces per pallet
720 Pieces per container /40‘HC
2310×1120×1255 1202kg
*Multi busbar technology
*High power output
*Double-sided power generation
*Extended wind and snow load tests
